EBOSS® 70 kVA
Power Module
Product Feature Highlights
70 KVA POWER MODULE
BUILT TO PERFORM IN ANY ENVIRONMENT

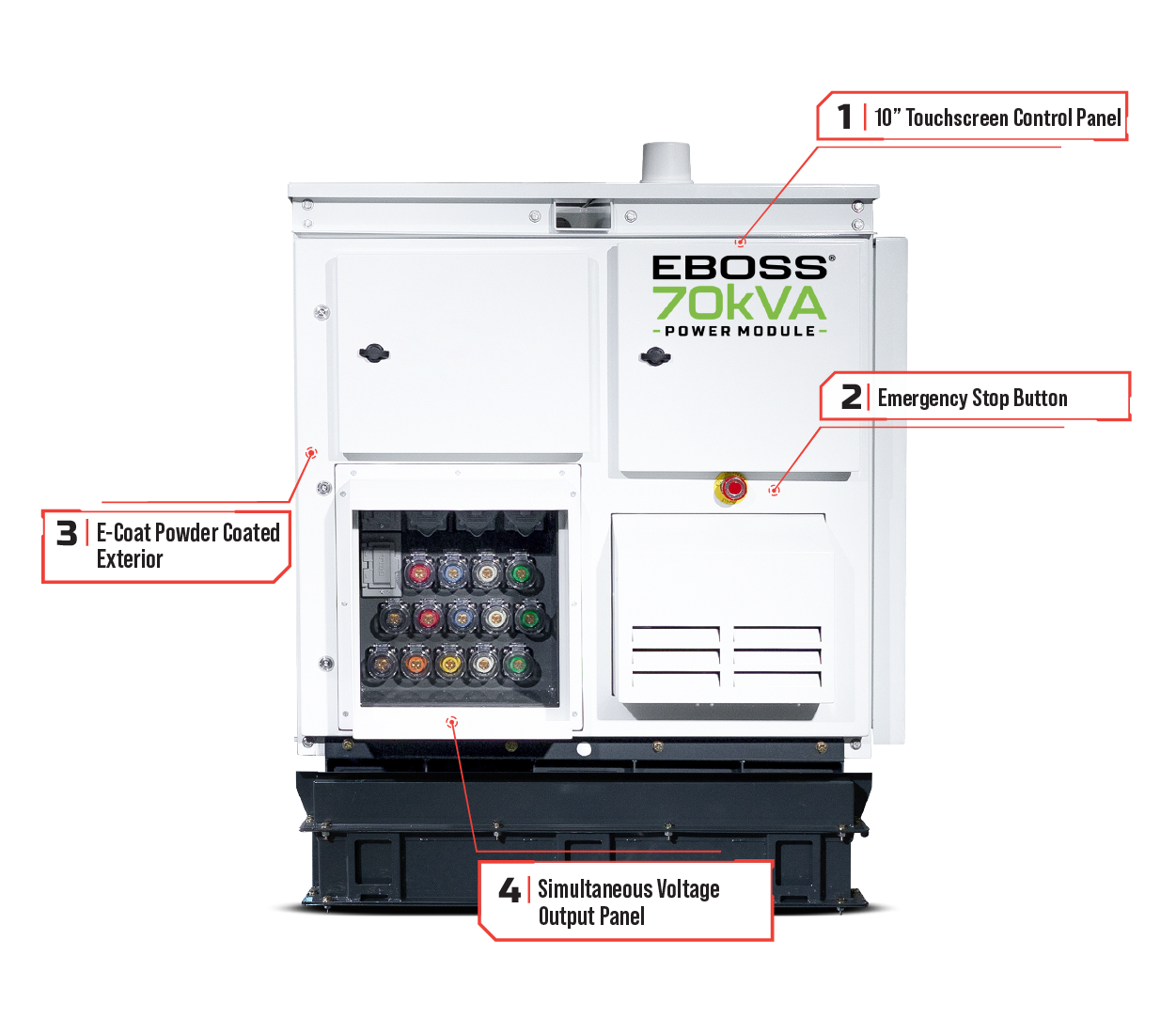

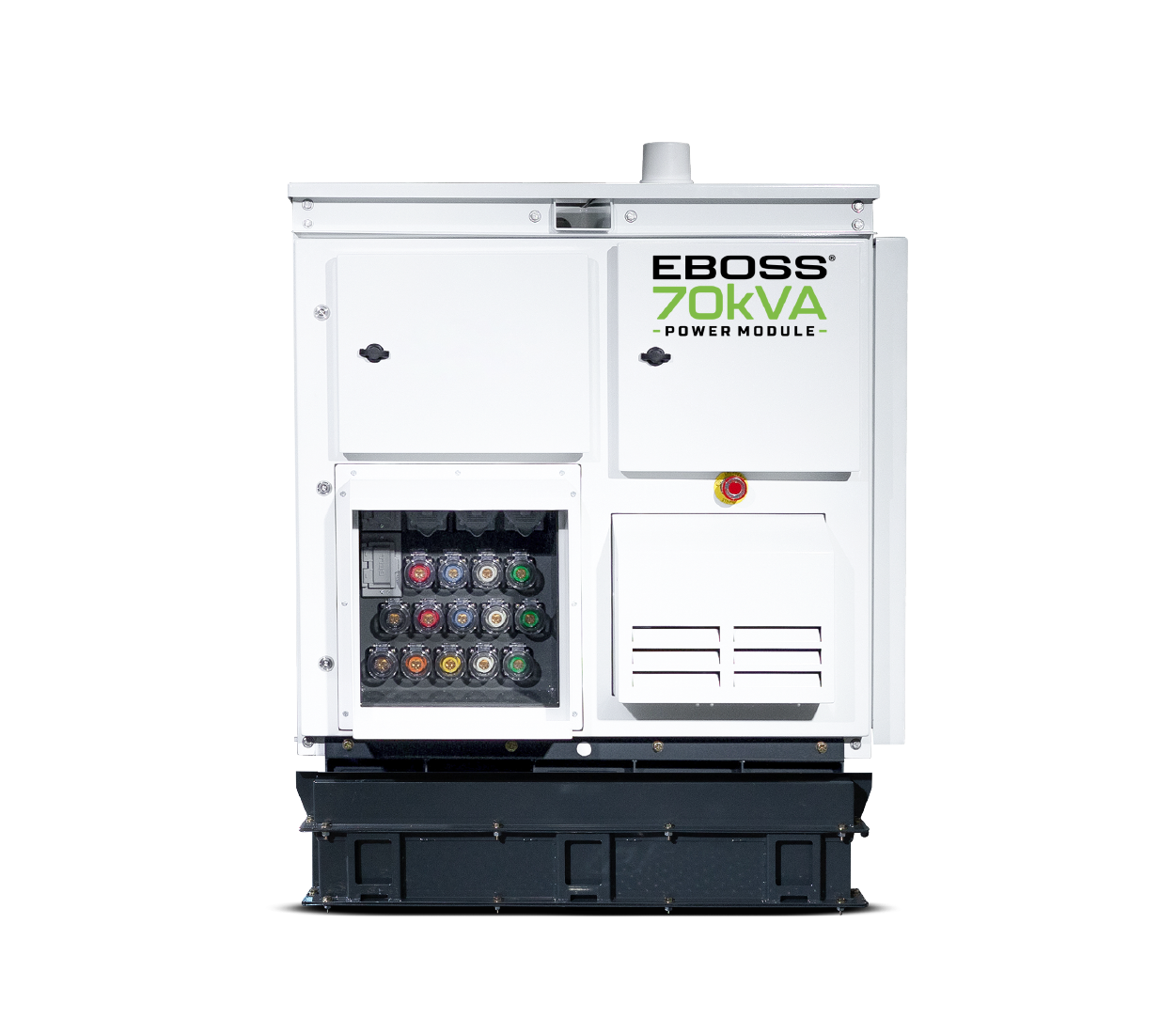

ANA’s EBOSS 70 kVA Power Module makes going green effortless with advanced energy and fuel-efficient features. Designed to reduce fuel consumption, maintenance costs, and greenhouse gas emissions, these innovative power modules deliver sustainable performance. Featuring a 25-kWh battery with a 20-year lifecycle at a 3-kW average load, the compact 70 kVA system provides robust, reliable power for diverse applications. EBOSS Power Modules offer simultaneous three-phase and single-phase output voltages, ensuring versatility and adaptability. Equipped with an all-in-one trailer, advanced telematics, and a user-friendly 10″ LCD display, these modules deliver high-quality power and reliability in any environment, paving the way for a cleaner and more sustainable future.
EBOSS Patent Notice
Why LTO and How Does it Compare?
EBOSS® Why Less Is More
What Makes EBOSS® Different?
How does the EBOSS Hybrid Energy System compare to traditional diesel generators or other battery energy storage systems (BESS)? Watch this video to find out how EBOSS maximizes engine efficiency, effectively reducing wet stacking, fuel consumption, carbon emissions, and maintenance costs.
The EBOSS®
Power Module
Reduce fuel costs and emissions on your generator today with the EBOSS® Power Module! We're currently developing more, bigger units, so stay tuned!
AWARD WINNING HYBRID SYSTEM
Winner of Rental 2023's Editor's Choice Award the EBOSS® Hybrid System offers advanced battery technology to deliver the ultimate job-site solution!
EBOSS® STARTUP PROCEDURE
How to start up your EBOSS® Hybrid System from ANA.
EBOSS® SHUTDOWN PROCEDURE
How to shut down your EBOSS® Hybrid System from ANA.
SKID MOUNT
SOLAR PANELS FOR EBOSS BATTERY
TRAILER MOUNT
PARALLEL CAPABILITY
COLD WEATHER/ARCTIC PACKAGE
TECHNICAL SPECIFICATIONS
HYBRID ENERGY SYSTEM | ANA EBOSS® |
SINGLE-PHASE | 47 kVA / 37 kW |
| THREE-PHASE | 70 kVA / 56 kW |
FREQUENCY | 60 Hz |
VOLTAGE 1 PHASE (SIMULTANEOUS) | 120V / 240V |
VOLTAGE 3 PHASE (SIMULTANEOUS) | 120V /208V 277V/ 480V |
VOLTAGE REGULATION | Adjustable |
MAX INTERMITTENT AMP-LOAD (120V) | 20 A |
MAX INTERMITTENT AMP-LOAD (240V) | 50 A |
THREE-PHASE (208V) | 208V Cam-Loks™ |
THREE-PHASE (480V) | 480V Cam-Loks™ |
SINGLE-PHASE (240V) | 240V Cam-Loks™ |
SKID WEIGHT (EBOSS® ONLY) | 2,513 lbs |
TOTAL WEIGHT (W & W/O FUEL) | 6,560 lbs / 5,988 lbs |
DIMENSIONS (EBOSS® ONLY) | 55″ L x 44″ W x 62″ H |
DIMENSIONS (W/ TRAILER & GEN.) | 167″ L x 71″ W x 76″ H |
